A novel mobile acoustic uroflowmetry: Comparison of uroflowmetry and mobile acoustic uroflowmetry

Young Ju L1, Jeeyoung S2, Jiyoung J2, Min-Ho S3, Hansol C4, Sangchul L1

Research Type

Clinical

Abstract Category

Continence Care Products / Devices / Technologies

Abstract 208
Products
Scientific Podium Short Oral Session 9
Wednesday 29th August 2018
15:20 - 15:27
Hall B
New Devices Voiding Diary Overactive Bladder
1. Seoul National University Bundang Hospital, Seongnam-si, Republic of Korea, 2. Dain Technology, Inc., Seoul, Republic of Korea, 3. Department of Electrical Engineering, Technical University of Denmark, Kgs. Lyngby, Denmark, 4. Faculty of Biology, University of Freiburg, Freiburg im Breisgau, Germany
Presenter
L

Lee Young Ju

Links

Abstract

Hypothesis / aims of study
Uroflowmetry is a screening urodynamic test in urology. Standard conventional uroflowmetry is inconvenient for patients because the measurement environment is unfamiliar and unnatural, demanding a timed voiding for the test. A novel acoustic uroflowmetry is based on sound analysis using a smart phone, and can be used at home without cumbersome settings. The aim of this study is to evaluate the accuracy of this method comparing the new acoustic uroflowmetry to a standard uroflowmetry.
Study design, materials and methods
A novel mobile acoustic uroflowmetry is an easy-to-use, non-invasive method to estimate the urine flow simply by recording the sound during voiding with a smart phone. After the approval of institutional review board, patients with voiding complaints were recruited and the voiding sound was recorded during standard uroflowmetry measurements. Male subjects were recorded in standing position and females in sitting position. The urine flow rate is calculated as the voiding sound was recorded and processed. Voided volume can be obtained by integrating the calculated flow rate. Cases with voided volume <20mL or having recording problems were excluded. Pearson’s correlation coefficient (PCC, r) was used to compare the maximal flow rate (Qmax), average flow rate (Qavg), and voided volume estimated by the standard uroflowmetry with those calculated via acoustic uroflowmetry.
Results
A total of 97 patients including 60 males and 37 females were analyzed. Mean age was 59.8, 59.9 years for men and women respectively. Urination sounds differently by gender, perhaps due to differences in their anatomy of pelvis/lower urinary tract and posture during urination. Therefore, the data was analyzed separately for men and women. Flow patterns recorded by acoustic uroflowmetry and conventional uroflowmetry showed a good visual correlation (Fig 1). For male patients, average Qmax, Qavg and voided volume were 15.4mL/s, 8.4mL/s and 198mL, respectively. An excellent correlation was observed between the two methods for Qmax (r=0.88), Qavg (r=0.91) and voided volume (r=0.95). For female patients, average Qmax, Qavg and voided volume were 18.5mL/s, 9.7mL/s and 204mL, respectively. Qavg (r=0.93) and voided volume (r=0.96) showed excellent correlation, while Qmax showed good correlation (r=0.78) between the two methods in females.

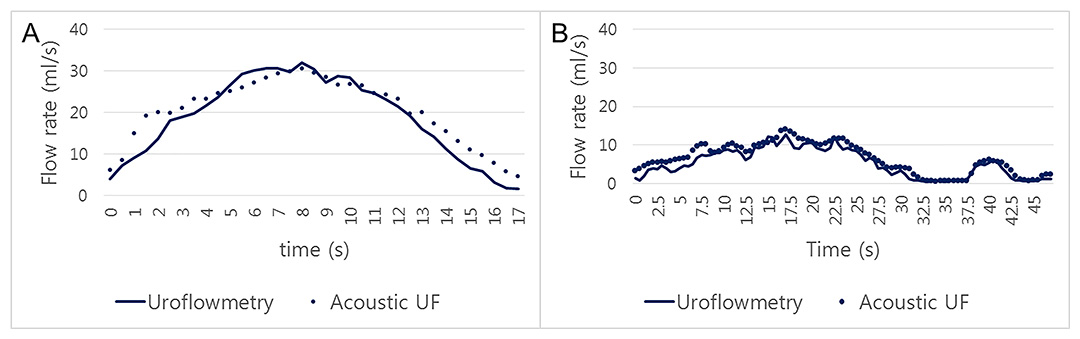

Figure 1. Examples of flow pattern recorded by the standard uroflowmetry (line) and acoustic uroflowmetry (dots) using voiding sound record after processing.
Interpretation of results
In 2015, Krhut et al. have reported a sound-based uroflowmetry, named ‘sono-uroflowmetry (SUF)’ [1]. This study was consisting 25 healthy male volunteers and demonstrated strong correlation for the duration (r=0.87). However, moderate correlation was observed in voided volume (r=0.68), and Qavg (r=0.57). For Qmax, poor correlation (r=0.38) was observed. Another study from the same team with 36 healthy female volunteers showed strong correlation for duration (r=0.95) but moderate correlation for voided volume (r=0.68) and poor correlation for the Qmax (r=0.38) [2].
While SUF focused on the basic relationship between sound intensity to instant flow rate in time domain, our prediction method analyzes various sound features and its combination in spectral domain. Additional algorithms were applied to suppress sound artifacts, offset environmental characteristics, and improve its prediction accuracy. Our results showed strong correlation between the result of standard uroflowmetry and estimated parameters by the acoustic sound based uroflowmetry. Qmax, Qavg and voided volume showed a strong correlation both in men and women who are with wide range of severity and various voiding patterns.
This easy to use mobile acoustic uroflowmetry can be used to check and monitor the urinary flow rate and volume both in patients and healthy people in daily, natural settings. It can also offer longitudinal trends of key urodynamic parameters in a quantitative manner, so would be helpful for not only patients and caregivers, but also for healthcare providers and payers who need to pre-screen and monitor lower urinary tract symptoms. The smartphone app has a uses an automatic voiding diary for daily usage. Time to void and voided volume can be calculated and filled by predicted urine flow from recording each voiding event, and automatically consolidated for each day. This quantitative and ease-of-use app might improve shortcomings of current voiding diary such as incomplete voiding diaries with missing values and low compliance. Limitations include that males voiding in sitting position are not included for the analysis. The concept and baseline technology can also be applied for pediatric applications, but more investigation and validation will be necessary.
Concluding message
This study shows that an acoustic uroflowmetry is possible with a good correlation with the standard uroflowmetry. Further works on prediction accuracy and error with different toilet settings is needed for broader use.
Figure 1
References
  1. Krhut, J., et al., Comparison between uroflowmetry and sonouroflowmetry in recording of urinary flow in healthy men. Int J Urol, 2015. 22(8): p. 761-5.
  2. Gartner, M., et al., Evaluation of Voiding Parameters in Healthy Women Using Sound Analysis. Low Urin Tract Symptoms, 2018. 10(1): p. 12-16.
Disclosures
Funding Funding - This work was supported by grant No S2534278 from the Ministry of SMEs and Start-Ups Research Fund. Clinical Trial Yes Public Registry No RCT No Subjects Human Ethics Committee Ethics approval and consent to participate - Seoul National University Bundang Hospital Insti-tutional Review Board (IRB) approved this study. IRB approval number is B-1709-423-301. Helsinki Yes Informed Consent Yes
