Perineometer and digital examination variation with the levator ani hiatus size

Tailor V1, McHayle A2, Morris E2, Gore M2, Turner J2, Bhide A2, Patel M2, Rahim A2, Fernando R2, Digesu A2, Khullar V2

Research Type

Basic Science / Translational

Abstract Category

Conservative Management

Abstract 24
Novel Techniques and Approaches in Basic Science
Scientific Podium Short Oral Session 3
Wednesday 4th September 2019
09:37 - 09:45
Hall G3
Pelvic Floor Physiotherapy Conservative Treatment Female
1.Imperial College NHS Trust, London, 2.Imperial College NHS Trust

Visha Tailor



Hypothesis / aims of study
Assessment of a woman’s ability to perform a pelvic floor muscle contraction (PFMC) can be carried out with digital examination  or vaginal manometry using a perineometer.  Scoring of the PFMC using the validated oxford scale [1]is considered to be in concordance with vaginal perineometry when compared directly [2].

Perineometry provides a measured value for the strength of a PFMC. Variables that may affect baseline vaginal pressures include pelvic floor muscle thickness and levator hiatus area.   It has been demonstrated that ‘black’ nulliparous women have a significantly wider transverse diameter of the levator hiatus compared to age and BMI matched white nulliparous women [3].
The aim of this study was to assess manometry readings of simulated pelvic floor muscle contractions on a model levator hiatus.

We hypothesise that simulated pelvic floor muscle contractions in a model of the pelvic floor will produce lower perineometer pressures with a larger levator ani hiatus compared with a smaller hiatus using the equivalent strength of muscle contraction.  We will also assess the value of digital examination.
Study design, materials and methods
This study was based on building a model of the human pelvic floor.  The size of the genital hiatus was re-created using data describing the smallest and largest levator hiatal measurements as identified by 3D trans-perineal ultrasound [3].  A 1 inch thick board had small and large levator hiatus cut outs with the dimensions, 3.4cm by 3.7cm and 8.2cm by 6.4cm respectively.  A neonatal blood pressure cuff (Phillips) was placed within the hiatus around the circumference to represent the pelvic floor.  Inflation of the blood pressure cuff was to set pressure readings of 10, 20, 40, 60, 80, 100mmHg represented different strengths of a maximal pelvic floor muscle contraction.

Digital examination of the model levator hiatus (mLH) was carried out using the Oxford Scale of muscle strength assessment score to assess the strength of the stimulated pelvic floor contraction (sPFC).  The positioning of the model was to mimic a patient in the supine position. Examinations were carried out by 3 experienced healthcare practitioners who were blinded to pressures in the pelvic floor cuff.  The maximum and minimum contraction of each mLH was first palpated by each practitioner.  Digital examination of the mLH was then carried out at set inflation pressure points of 10, 20, 40, 60, 80, 100mmHg in random order.  The observer was blinded to the strength of the simulated pelvic floor muscle contraction as well as being blinded to the findings obtained by other observers.  Each pressure point was assessed twice at different times of the day.  Between stimulated contractions the cuff was completely deflated (stage 0), digital examination was carried out from this baseline point to the set pressure point of the sPFC.

Examination of the small and large model hiatus was repeated using a perineometer (Peritron, (NEEN Healthcare, Oldham, UK) ).  A baseline reading of 0mmHg was set to assess all simulated pelvic floor contraction pressures for both the large and small model hiatus sizes.  The test was carried out twice for each hiatus size and pressures to enable a test retest analysis.  The tests were repeated with increasing perineometer baseline settings of 10, 20, 30, 40, 50, 60, 70 mmHg by inflating the perineometer with air.
Correlation between increasing cuff pressure was positively associated with a higher Oxford score following digital examination for both the small and large levator ani hiatuses, Spearmans rank correlation coefficient (rs 0.87, p<0.05) and (rs 0.95, p<0.05) respectively.

The intra-observer correlation coefficients were 0.75, 0.74, 0.71 for digital assessment of the small model hiatus and 0.87, 0.89, 0.88 for the large model hiatus.  The inter-observer correlation coefficients were 0.86 and 0.94 for the small and large model hiatus’ respectively. Correlations above 0.61–0.80 are good and 0.81–1.00 excellent.

A Mann-Whitney U test was carried to assess differences in Oxford scores between the two models.   Oxford scores for the small levator ani hiatus (33) were not significantly different to the large levator ani hiatus (45), U = 12, z = -0.96, p > 0.05 for each sPFC strength.

Intra-observer correlation coefficient for perineometer readings varied between the size of the mLH and the perineometer baseline pressure.  For the small mLH the ICC ranged from 0.96 – 0.99. For the large mLH the ICC varied from 0.70, 0.26, 0.70, 0.65, 0.76, 0.95, 0.92, 0.77 for each 10mmHg increment starting at a baseline of 0mmHg to 70mmHg.

An independent-samples t-test was run to demonstrate a significant difference between the recorded sPFC pressure rise from baseline to maximum sPFC (cuff pressure of 0mmHg to 100mmHg).  The average pressure rise in the small levator ani hiatus was 39mmHg ± 9.9 and 4.4mmHg ± 1.6 for the large levator ani hiatus.  A statistically significant difference was observed t = 3.3, P< 0.01.
There were significant differences between the perineometer readings with the pelvic floor pressures below 40mmHg between the small and large levator ani hiatuses (t-test, p<0.03), however above this pressure there was no significant difference in readings.
Interpretation of results
Through a positive correlation, we demonstrate the functionality of the model created for this study.  There was good or excellent inter and intra-observation correlation between examination findings of sPFC between both levator ani hiatus models. There was no difference in the digital assessment scores given to each model for each sPFC strength.

Perineometer measurements showed a larger incremental rise from baseline in the small levator ani hiatus compared with the large levator ani hiatus with equal sPFC strength. However this is not associated with an actual higher strength PFC as confirmed by concordant Oxford scores from digital examination for the differing levator ani hiatus sizes.
Concluding message
This study demonstrates that perineometer readings are altered by the variations in levator ani hiatus size as well as PFC strength.  Pelvic floor exercises have been shown to change the levator ani hiatus size. Measurements cannot be compared unless the levator ani hiatus size is known.  The Oxford digital examination is not dependent on the levator ani hiatus size.

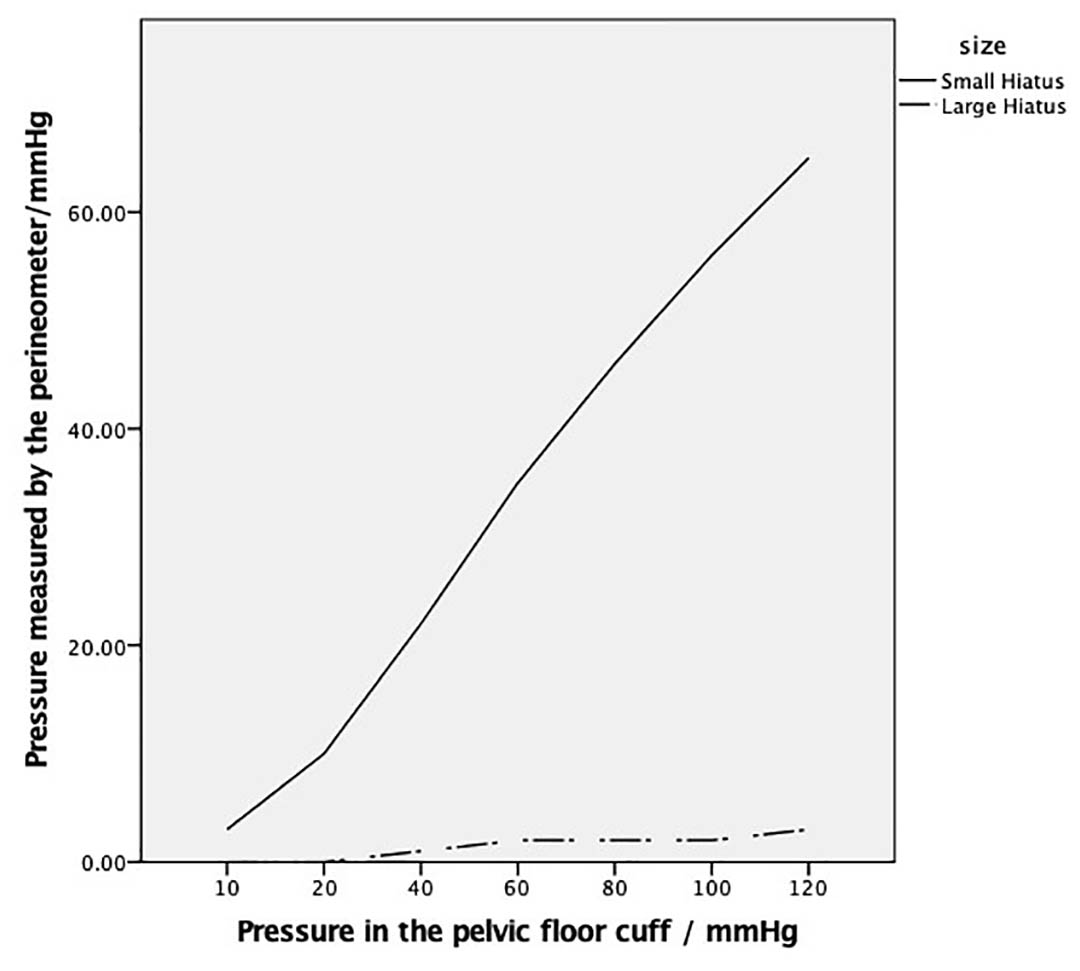

Figure 1 Figure 1: Difference in Perineometer pressure readings of a small and large levator hiatus with increasing pressure in the pelvic floor cuff
  1. A digital test for pelvic muscle strength in women with urinary incontinence. Nurs Res 1994; 43: 352– 356.
  2. Comparative assessment of pelvic floor strength using a perineometer and digital examination. BJOG 2007 107 (8) :1007-1011
  3. Racial differences in female urethral morphology and levator hiatal dimensions: an ultrasound study. Neurourol Urodyn. 2012 Apr;31(4):502-7.
