Artificial Neural Network application on non-invasive uroflowmetry parameters and flow shape for discriminating DU from BOO in males

Li R1, Gammie A2, Zhu Q1, Nibouche M1, Chen C1

Research Type

Pure and Applied Science / Translational

Abstract Category


Abstract 275
Best Basic Science
Scientific Podium Session 16
Thursday 5th September 2019
10:15 - 10:30
Hall G3
Urodynamics Techniques Bladder Outlet Obstruction Underactive Bladder
1.University of the West of England, 2.Bristol Urological Institute

Rui Li



Hypothesis / aims of study
Non-invasive diagnosis of detrusor underactivity (DU) is in high demand, however the similarity of low flow rate with bladder outlet obstruction (BOO) hampers the possible non-invasive diagnostic development. There are a few articles proposing uroflowmetry parameters for discriminating DU from BOO non-invasively, but the diagnosing power is still limited (1). A recent study proposed to combine non-invasive parameters to differentiate DU from BOO by employing a linear statistical model, and yield optimised sensitivity of 73.1% and specificity of 84.6% (2). in this study, the aim is to test the possibility of using feedforward artificial neural network (ANN) method, which has the key feature of nonlinearity and capable of learning and adaptability, to non-invasively differentiate DU from BOO by employing non-invasive urine flow parameters and flow shape.
Study design, materials and methods
158 BOO and 135 DU free flow data from male patients who underwent pressure flow studies (PFS), studied in a single specialist centre between 2012 and 2018 were selected for analysis in this study. Free uroflowmetry was performed before each PFS which was carried out according to ICS guidelines, with sampling rate of 10Hz. All urine flow rate data have been pre-processed for start and end points with a threshold value of 0.5ml/s. The analysis was conducted in the MATLAB version 2018b.
The non-invasive parameters employed for generating ANN model are derived by analysing urine flow rate in both time and frequency domains, which are the same as in previous analysis of a multivariate analysis of variance (MANOVA) model and have been proved to have significant statistical difference between the two groups (2). In order to test the diagnostic utility on pure flow shape with ANN, each set of urine flow data is normalised into 1000 re-sample points and a maximum amplitude of 1ml/s (3).
All data are split randomly with the percentage of 70, 15, 15 for training, validation and testing respectively. The ANN models for non-invasive parameters and flow shape are built of one hidden layer with 53 and 815 hidden neurons separately which are chosen by five-fold cross validation on overall accuracy.
The ROC curves and confusion matrices of ANN models using non-invasive parameters and urine flow shape on discrimination between DU and BOO are presented as in figure 1 and 2 separately. 205 data are enrolled in the training procedure of the ANN models, and 44 data are enrolled in the validation and testing of the model respectively. In the confusion matrices, 1 represents DU and 0 represents BOO.
Interpretation of results
The result shows that feedforward ANN model holds promise to discriminate DU from BOO by employing non-invasive uroflowmetry parameters, with 79.5% overall accuracy, 75.6% sensitivity and 82.9% specificity. The designed ANN model on urine flow shape has a lower overall diagnosing accuracy of 70.6%, with 54.3% sensitivity and 82.7% specificity. Both models are fairly robust as the overall accuracies are similar to training accuracies.  The data used in this study, however, were preselected to be patients with either DU or BOO urodynamically proven.  A full clinical trial will need to use a more mixed population.
Concluding message
In this study, we have tested the diagnostic utility of ANN models to discriminate DU with BOO non-invasively by employing uroflowmetry parameters and pure flow shape respectively. In the ANN model using uroflowmetery parameters, the overall accuracy of 79.5% shows the potential of employing ANN to non-invasively diagnostic DU.
Further research will be focus on employing the convolutional  on non-invasive parameters and recurrent ANN model on flow shape to enhance the diagnostic power, and the robustness of designed model will be tested and improved by including a greater number of free flow data in other institute databases.

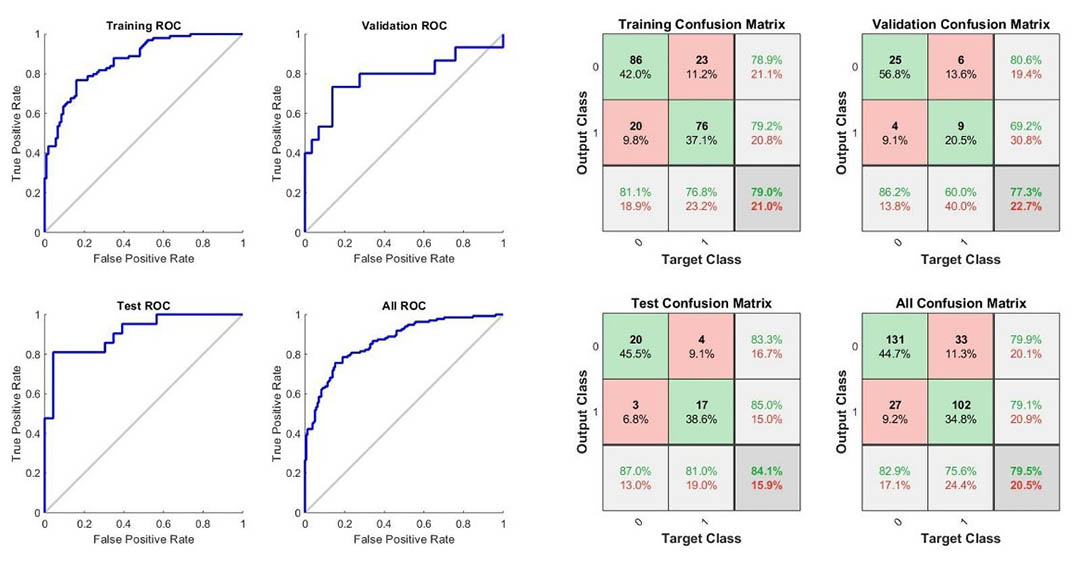

Figure 1 ROC curve and confusion matrix of ANN model on non-invasive parameters

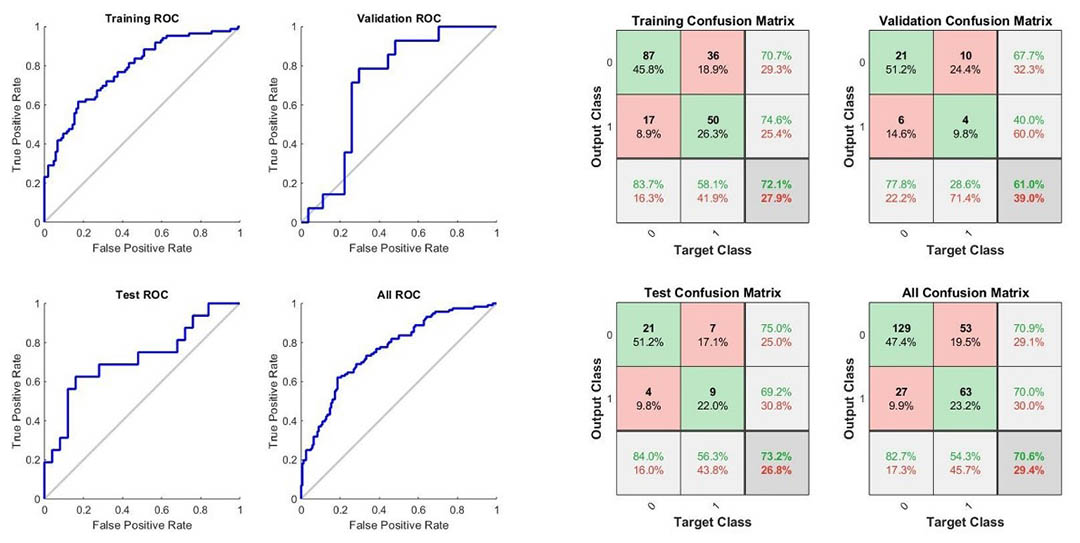

Figure 2 ROC curve and confusion matrix of ANN model on urine flow shape
  1. Lee KS, Song PH, Ko YH. Does uroflowmetry parameter facilitate discrimination between detrusor underactivity and bladder outlet obstruction?. Investig Clin Urol. 2016;57(6):437-441.
  2. Li R, Gammie A, Zhu Q, et al. Multivariate analysis of variance for maximising the diagnosing accuracy in differentiating DU with BOO in male, Neurouro. Urod. 2018; 37(Suppl 5): S327-S328.
  3. Li R, Gammie A, Zhu Q, et al. Urine flow rate shape template and intermittent flow in males, Neurouro. Urod. 2018; 37(Suppl 5): S128-S129
Funding The project has been partially supported by a grant from Astellas. Clinical Trial No Subjects Human Ethics Committee University of the West of England Helsinki Yes Informed Consent Yes
